ALUMINIUM HONEYCOMB & CORRUGATION PANELS LINE

1. BASIC PANEL SANDWICH CHARACTERISTICS.

0. COVER SHEETALUMINIUM 3000 & 5000 SERIES.
0. CORE CELLALUMINIUM HONEYCOMB 3000 SERIES.
0. V CELL SIZE1/4” TO 1”(6.3 mm -25.4 mm).
0. CORE FOIL THICKNESS 50-80 micron.
0. CORE DENSITY 4.8 TO 1.4 pcf(0.08 gr/cm3-0.02 gr/cm3)
0. INTENDED USE(APPLICATIONS) ARCHITECTURAL BUILDING WALL CLADINGS, TRANSPORT & INDUSTRIAL.
0. STRUCTURAL REQUIREMENT WIND-LOADS HIGH RAISE BUILDINGS.
0. FIRE PERFORMANCE EUROCLASS B(EN 13501-1).
0. ADHESIVES STRUCTURAL EPOXY/PU, HIGH PEEL STRENGTH, STABILITY AND EXCELLENT.
  • -FIRE BEHAVIOUR A2B(EN 13501-1)
0. TEMPERATURE RESISTANCE-40℃ TO +80℃

2. SANDWICH PANEL DIMENSION REQUIERMENTS.

0. TOTAL PANEL THICCKNESS6mm/8mm/10mm/15mm/20mm/25mm
0. CORE THICKNESS4.5mm TO 23mm.
0. SHEET THICKNESS1/0.7mm; FRONT SIDE.
0.5/0.7mm; REVERSE SIDE.
(USUALLY STANDARD PRODUCTION 0.7 EXT/0.5 INT)
PVDF PAINTED EXT. FACE.
0. TOTAL PANEL WEIGHT 4.9 TO 8 Kg/m2
0. PANEL WIDTH1250mm/1500mm/1750mm/2000mm(MAX.).
0. STANDARD LENGTH PANEL 9,000mm(MAX.)
0. THICKNESS TOLERANCE +/- 0.2mm
0. FLATNESS ≤0.15%

3. INDUSTRIAL PRODUCT BASIC SPECIFICATION

0. LINE SPEEDMAX. SPEED 4m/minute.
0. PRODUCTION CAPACITY2,800,000 m2/YEAR BY 3 SHIFTS.
0. PROCESS OF PRODUCTION LINE MAX. EFFICIENCY PRODUCTION PROCESS AND MINIMUM PRODUCTION COSTS. FULLY AUTOMATIC CONTINUES LINE AND STACKING EQUIPMENTS.
0. LINE LENGTH 75/70ml(+20 ml FREE AFTER AND BEFORE).
LENGTH PLANT; 110 ml
0. UNCOILERS REQUIREMENTS 2 UNITS(ONE IS UP AND ANOTHER IS DOWN).
WIDTH OF COIL; 2200mm(max)/1250/1500/1750/2100mm
INTERNAL DIA.; 508mm/EXTERNAL DIA.;1500mm
MAXIMUM WEIGHT; 8 TON PER COIL.
0. CUTTING MACHINE TRANSVERSAL CUTTING AND TWO LONGITUDINAL CUTTING EDGES.
0. PRESS MACHINE HEATING PRESS DOUBLE BELT.
0. FILM PROTECTION EQUIPMENTINCLUDED FOR 2000mm WIDTH AND 80 MICRONS THICKNESS.
0. PRIMARY ALUMINIUM HONYCOMBWILL BE USED FROM NON SPANDED SLICE AT THICKNESS
REQUIRED IN CORE OF CELL SIZE 1/4”.
(ALLOY 3003-THICKNESS 50 MICRONS, PRE-TREATED AND MICRO PERFORATED. THE BUYER WILL SUPPLY.
0. MACHINE FOR JOINT SLICEWILL BE INCLUDED IN THE LINE.
0. MACHINE FOR EXPANED HONEYCOMBWILL BE INCLUDED IN THE LINE IN CONTINUOUS PROCESS.
0. STACKERINCLUDED FOR PANELS MAXIMUM SIZE 2000 * 9000mm.
PALETS WITH 1.5 meters HEIGHT POSSIBLE.

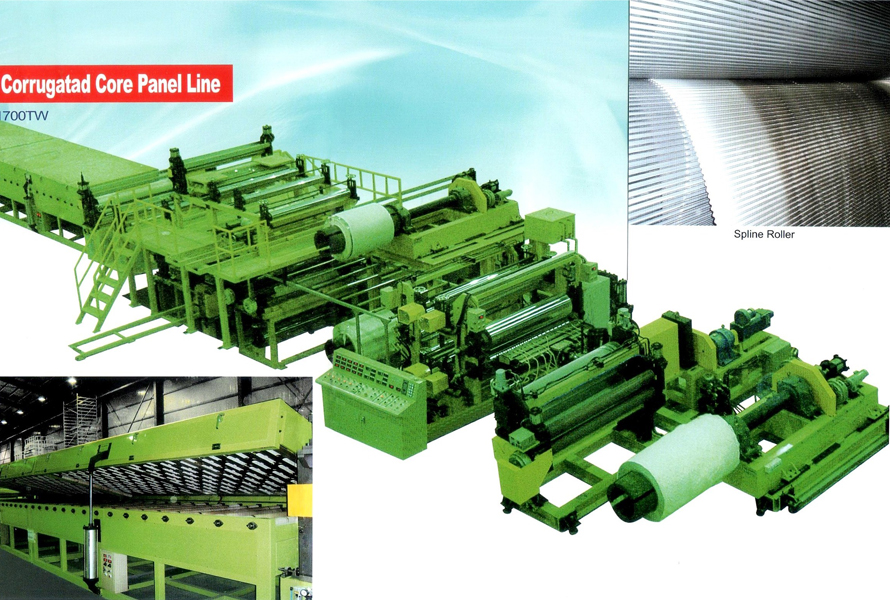

4. MAIN PARTS OF AL. CORRUGATED CORE PANELS MFG. LINE

5. PRODUCTS OF AL. CORRUGATED CORE PANELS.

  • corrugation1

  • corrugation2

  • corrugation3

  • corrugation4

  • corrugation5

6. VIDEO CLIP FOR AL. CORRUGATED CORE PANELS MFG.LINE.

  • CORROGATION

7. HONEYCOMB PANELS

  • honeycomb1

  • honeycomb2

  • honeycomb3

  • honeycomb4

  • honeycomb5

8. HONEYCOMB

  • honeycomb core

  • honeycomb core

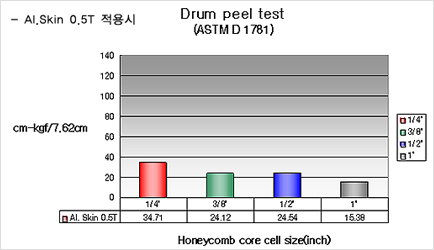

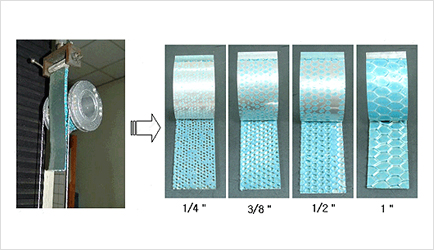

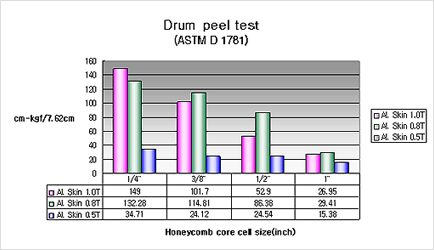

  • drum peel test

  • drum peel test

  • drum peel test

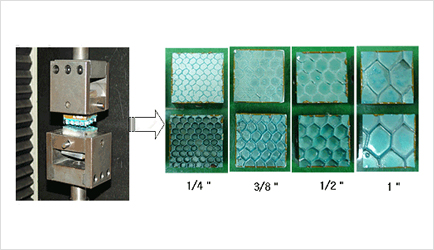

  • prod honey test

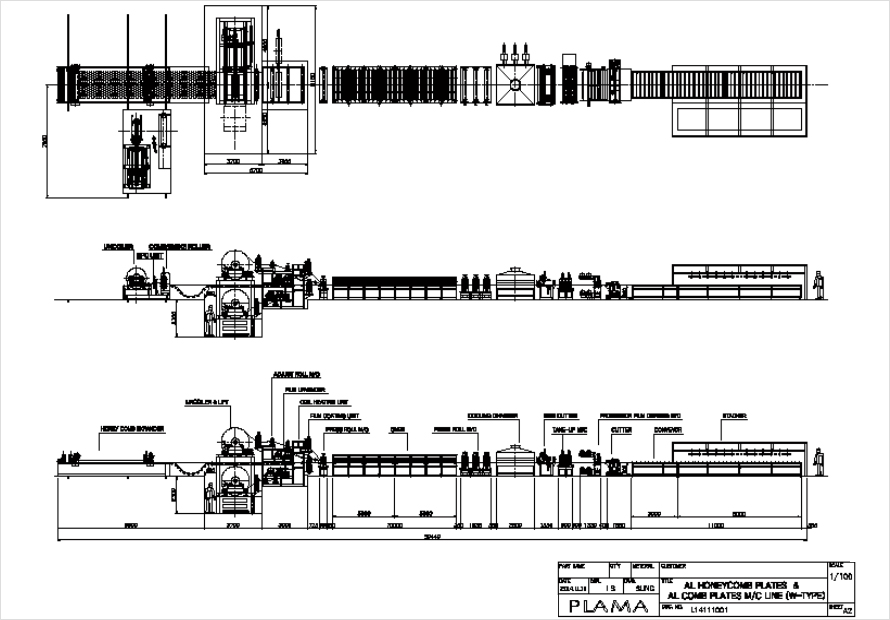

9. LAYOUT
